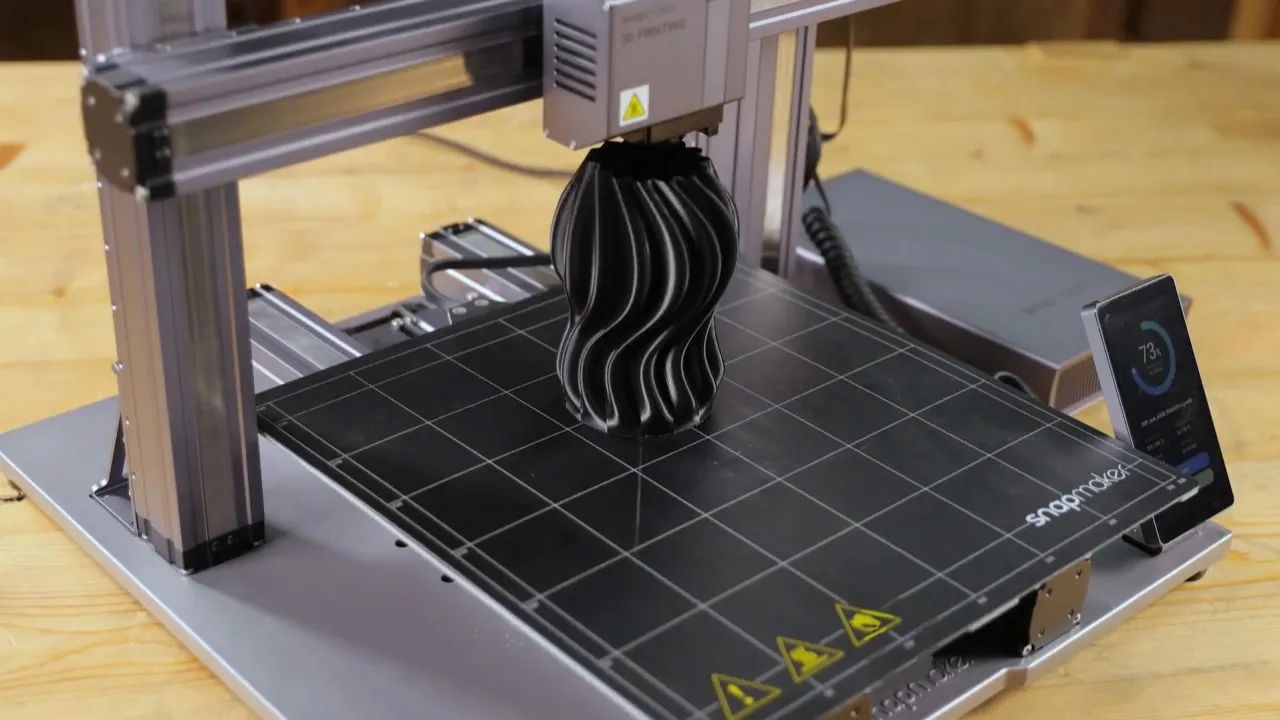

Calibrating a dual extruder 3D printer can significantly improve print quality, enabling you to achieve detailed, multi-material, and multi-color prints. However, the calibration process for dual extrusion is more complex than for single extruders. In this guide, we’ll cover the essential steps you need to follow to ensure your dual extruder printer performs at its best. By the end, you’ll understand how to align the nozzles, adjust extrusion rates, fine-tune retraction settings, and more, so you can create stunning prints with precision.
Preparing for Calibration
Before diving into the calibration steps, it’s essential to prepare adequately. Gather necessary tools such as a calibration cube, digital calipers, and the types of filament you plan to use. Clean both nozzles to ensure there are no clogs, which can affect calibration accuracy. Additionally, make sure your printer firmware is up-to-date and that your slicer software supports dual extrusion. Using a slicer optimized for the best 3D printer with dual extrusion capabilities can make the process more straightforward and ensure compatibility with your model.
Aligning the Nozzles
In dual extrusion printing, both nozzles must be precisely aligned to avoid shifts or gaps in prints. To align your nozzles:
- Use a Calibration Print: Start with a dual extrusion calibration file, which will allow you to print with both nozzles simultaneously and help you identify any misalignment.
- Adjust Nozzle Heights: If you notice discrepancies, adjust the height of each nozzle. Some printers allow for manual adjustments, while others may have software-based solutions. Make sure both nozzles extrude filament evenly across the print bed.
- Fine-Tuning: After initial adjustments, run another test print. Repeat this process until both nozzles are perfectly aligned and printing without interference.
Calibrating Extruder Steps (E-steps)
Calibrating E-steps is crucial for controlling how much filament each extruder pushes out. Each extruder should be calibrated separately to ensure accurate material flow. Follow these steps:
- Measure Filament: Use digital calipers to measure a specific length of filament (e.g., 100mm) from the entry point into the extruder.
- Extrude Filament: Command the printer to extrude the measured length, then measure what’s left.
- Calculate and Adjust E-steps: Use the difference between the expected and actual extruded lengths to adjust the E-step setting in your firmware. Repeat for the second extruder, and fine-tune until both are extruding accurately.
Bed Leveling and Z-Offset Adjustment
Bed leveling and setting the correct Z-offset are critical for adhesion and print quality, especially when dealing with two extruders:
- Manual or Automatic Bed Leveling: Depending on your printer, either manually level the bed using adjustment screws or use the printer’s auto-leveling feature.
- Set Z-Offset: Each nozzle requires a specific Z-offset to ensure it starts printing at the correct height. Adjust each nozzle’s Z-offset, testing with a calibration print to ensure neither nozzle is too high (causing poor adhesion) nor too low (causing scraping).
- Confirm with Test Prints: Print a small test object, such as a simple square or circle, with each nozzle to confirm the Z-offset settings are accurate and both nozzles print well without dragging or leaving gaps.
Configuring Retraction and Ooze Settings
Retraction settings help control filament flow and prevent issues like stringing and oozing, common challenges in dual extrusion. With two nozzles, using purge towers or ooze shields can further reduce unwanted mixing. Here’s how to optimize these settings:
- Retraction Distance and Speed: Set retraction distance and speed in your slicer to retract filament when the nozzle is moving between areas. Adjust these settings based on filament type, and ensure both extruders retract correctly.
- Use Ooze Shields or Wipe Towers: Enable ooze shields or wipe towers to capture filament that oozes during printing, preventing it from marring your final print. These are especially helpful for complex, multi-color or multi-material models.
- Adjust for Material Types: Different filaments, such as PLA and ABS, have varying retraction needs. Test and tweak the settings for each material type to minimize filament waste and ensure clean prints.
Calibrating Temperature Settings
Each filament type has an optimal temperature range, and dual extruders may require different temperatures simultaneously. Here’s how to approach it:
- Determine Optimal Temperature: Start with the recommended temperature range for each filament type and run a temperature tower to test various settings.
- Set Independent Nozzle Temperatures: In dual extruder 3D printers, each nozzle can usually be controlled separately. This allows you to print with materials requiring different temperatures, like PLA and PVA. Adjust accordingly in your slicer.
- PID Tuning for Stability: Perform PID tuning on each extruder to stabilize temperature fluctuations, particularly if your printer supports it.
Slicer Settings for Dual Extrusion
Configuring your slicer settings is key to achieving good results. For dual extruder setups, slicing software must handle multiple extruders:
- Assign Extruders to Parts: In your slicer, designate which extruder handles which parts of the print. This is essential for multi-material or multi-color prints.
- Optimize Layer Height and Print Speed: Depending on the resolution you want, choose layer heights and speeds that suit each material. Slower speeds can improve adhesion for complex models.
- Dual Extrusion Modes: Choose modes like multi-color, multi-material, or soluble support based on your project. Many of the best 3D printers offer these modes, allowing you to create intricate designs without extensive post-processing.
Testing and Fine-Tuning
Once you’ve calibrated the printer, it’s time to test your settings:
- Perform a Test Print: Start with a small dual-extrusion model to check for issues like misalignment, poor adhesion, or stringing.
- Troubleshoot: If problems arise, return to the relevant section and make adjustments as necessary. Each printer and filament combination may need different tweaks.
- Repeat as Needed: Dual extruder printers often require multiple rounds of calibration to achieve the best results, so be patient and make adjustments as needed.
Conclusion
Calibrating a dual extruder 3D printer might seem time-consuming, but the effort pays off in better print quality, reliability, and expanded printing capabilities. Dual extrusion allows you to explore multi-color, multi-material, and soluble support options, making your projects more versatile and intricate. For those interested in high-quality printing, investing time in calibration is worth the effort. Regular maintenance, along with proper setup and calibration, ensures the best 3D printers can continue to produce stunning results with every print.
